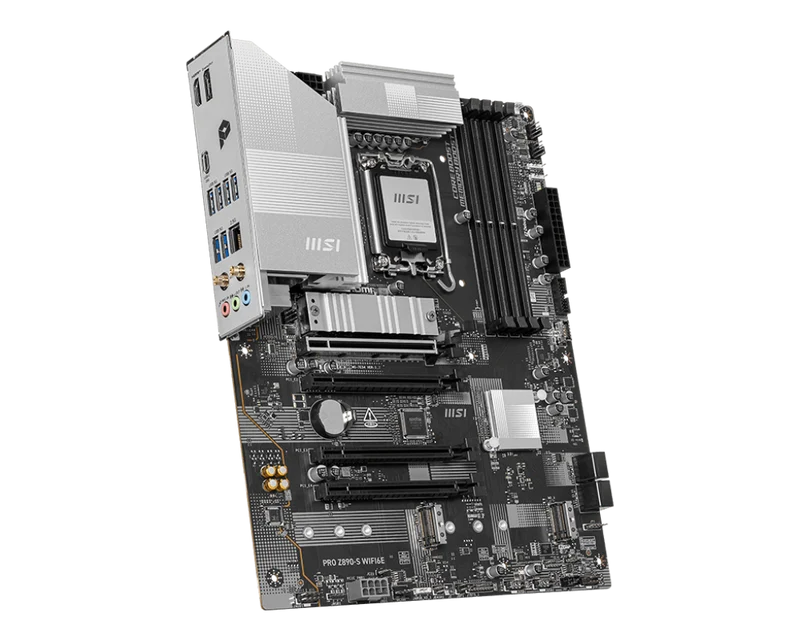

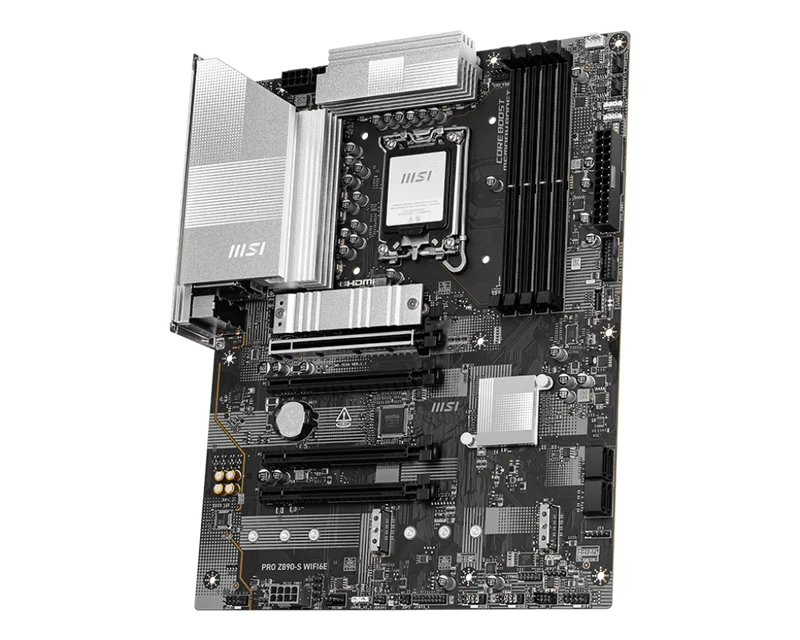

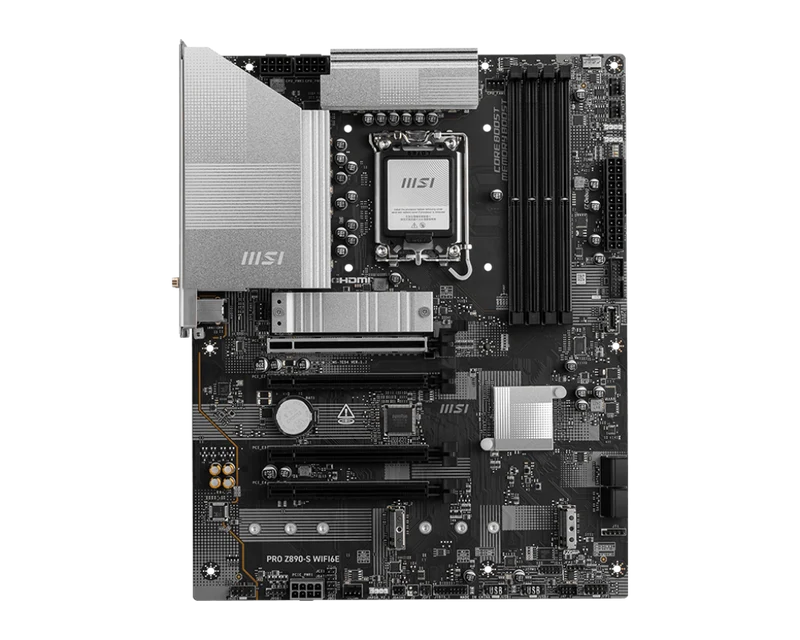

MSI PRO Z890-S WIFI6E

• Support des processeurs Intel® Core™ Ultra (série 2) pour socket LGA 1851
• Support de la mémoire DDR5, Dual Channel DDR5 8800+ MT/s (OC)
• Alimentation améliorée : système double rail à 12+1+1+1 phases avec P-PAK, deux connecteurs d'alimentation CPU à 8 broches, technologies Core Boost et Memory Boost et PCB de niveau serveur à 6 couches
• Frozr Guard : dissipateur plus large, pads thermiques MOSFET 7 W/mk, pads thermiques supplémentaires pour les inductances de puissance et slots M.2 Shield Frozr
• Fonctionnalités EZ DIY : EZ PCIe Clip II, EZ Conn-Design et EZ Antenna
• Expérience gaming ultrarapide : slots PCIe 5.0 et Lightning M.2 Gen5 x4
• Connexion de qualité : solutions 2,5G LAN et Wi-Fi 6E, des solutions de dernière génération pour une utilisation professionnelle et multimédia, qui assurent une connexion et des transferts de données sécurisés, stables et ultrarapides
• Audio Boost : une expérience immersive grâce à un son de qualité digne d'un studio professionnel

Télécharger la fiche technique

• Fiche technique

Chipset	INTEL Z890
CPU	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://ordiavenir.com/support/.
Onboard Graphics	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot	4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
Audio	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage	3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
LAN	Realtek® 8125D 2.5Gbps LAN
Internal IO	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH	Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE	4x EZ Debug LED

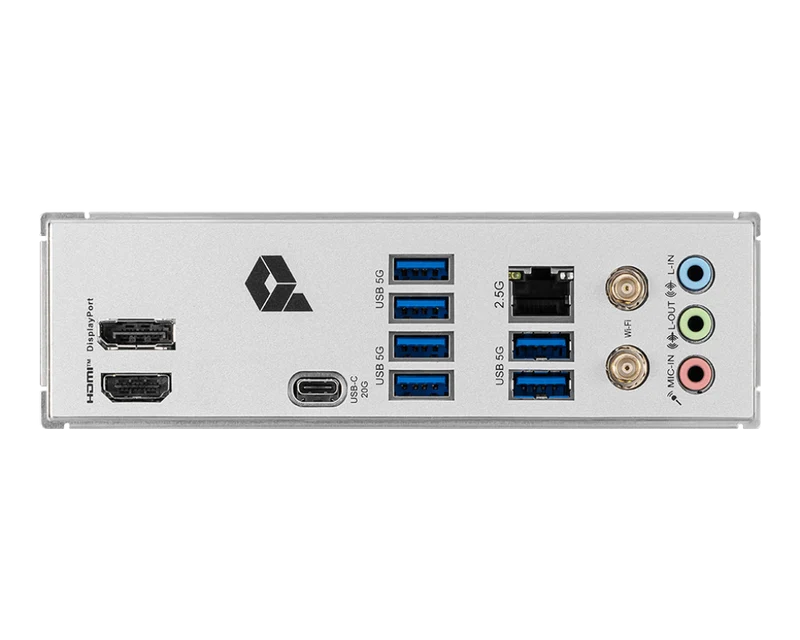

BACK PANEL PORTS	DisplayPort USB 5Gbps Type-A 2.5G LAN Wi-Fi / Bluetooth Audio Connectors HDMI™ USB 20Gbps Type-C USB 5Gbps Type-A
OPERATING SYSTEM	Support for Windows® 11 64-bit
BOX CONTENT
PCB Info	ATX 243.84mmx304.8mm
